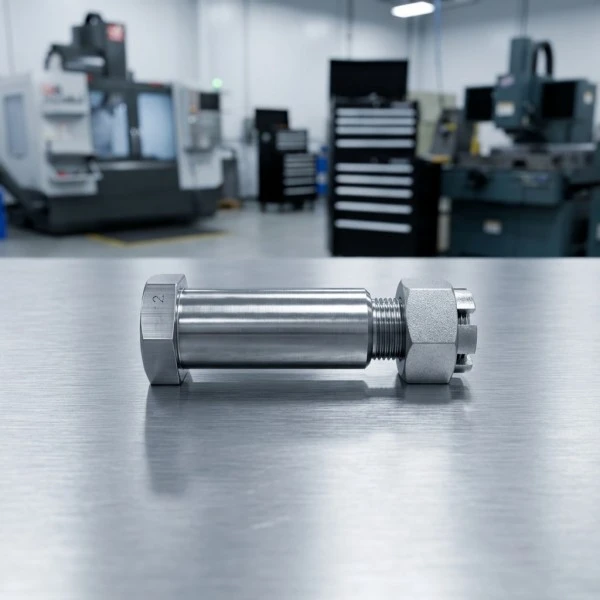

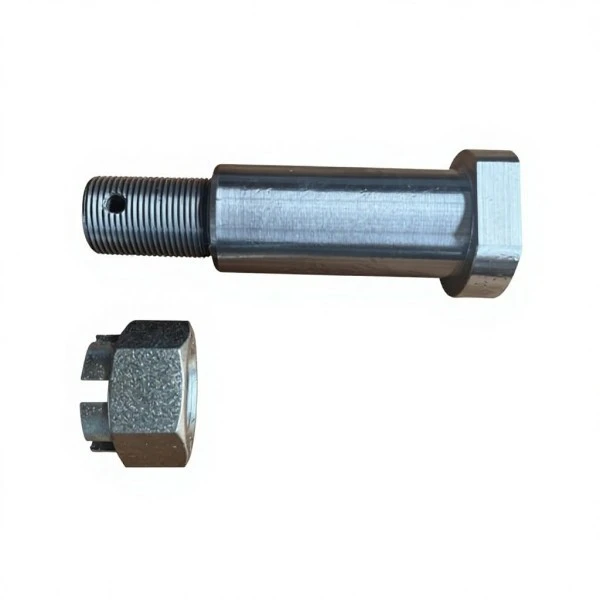

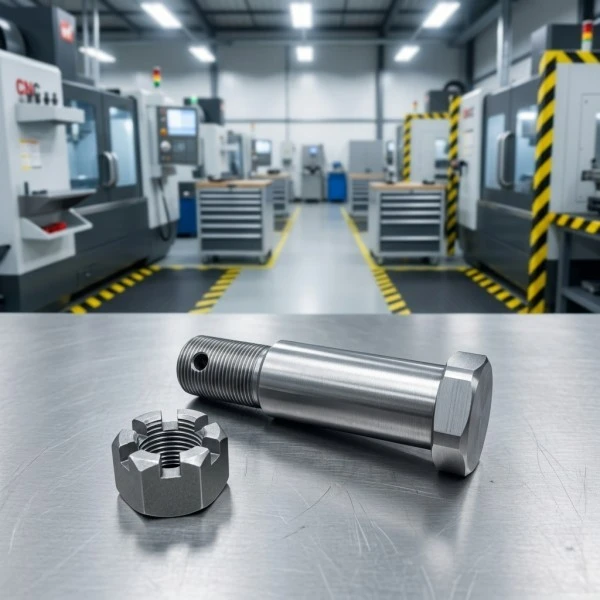

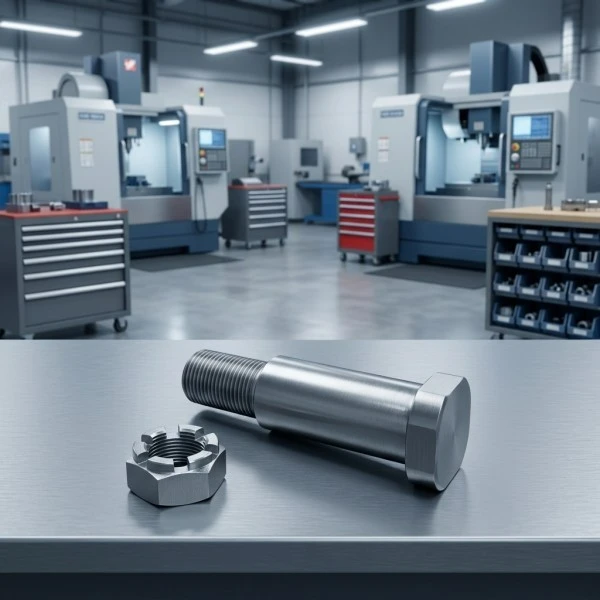

Product Description
Product Features
Customized for all drawings: dimensions, shape, hole positions, steps, threads, flat surfaces, etc. are precisely manufactured according to the drawings, ensuring exceptional fit accuracy.
Combines strength and toughness: suitable for tempering and quenching hardening treatments, with excellent resistance to shear, bending, and impact.
High machining precision: stringent tolerances for shaft diameter, coaxiality, and hole diameter ensure smooth assembly without vibration or jamming.
Versatile structural designs: Supports various shapes including flat heads, round heads, stepped holes, through holes, blind holes, external threads, and eccentric features.
A wide range of materials is available: select flexibly based on requirements for rust resistance, wear resistance, heavy-duty performance, and corrosion protection.
-
One-to-one blueprint implementation: Capable of replicating components from outdated equipment and custom-shaped structural parts, ensuring zero errors during equipment maintenance or replacement.
-
Mechanical properties can be customized as needed, with options tailored to specific requirements such as heavy-load shear resistance, high-speed wear resistance, or corrosion and rust prevention.
-
High surface smoothness: low friction resistance, smooth rotation, and low operating noise.
-
Full traceability: All drawings, manufacturing processes, and inspection data are retained, with standardized procedures for subsequent documentation updates and specification replication.
Working principle
Combines strength and toughness: suitable for tempering and quenching hardening treatments, with excellent resistance to shear, bending, and impact.
High machining precision: stringent tolerances for shaft diameter, coaxiality, and hole diameter ensure smooth assembly without vibration or jamming.
Versatile structural designs: Supports various shapes including flat heads, round heads, stepped holes, through holes, blind holes, external threads, and eccentric features.
A wide range of materials is available: select flexibly based on requirements for rust resistance, wear resistance, heavy-duty performance, and corrosion protection.
Conveying line: conveyor frame, material blocking mechanism, lifting assembly, and roller connection pin shaft.
Construction machinery/Agricultural machinery: connecting rod with hinge, movable arm, bucket body, and heavy-load pin shaft for the walking mechanism.
Packaging, printing, and textile machinery: oscillating components, pressing mechanisms, and connecting pins for opening/closing parts.
Machine tools and general-purpose equipment: machine tool accessories, pump bodies, fans, and internal positioning pins for reducers.
Food and medical equipment: Stainless steel pins meeting cleanliness, waterproofing, and rust resistance requirements.
Specification
| Diameter |
Φ5mm – Φ500mm; M5 – M300 (Large sizes available for customization) |
|
Material |
40Cr, 42CrMo, 20CrMnTi, SUS304 45#, 35CrMo, Copper alloy, 12L14 .Customizable |
| Precision |
±0.005 mm (cylindricity, true roundness) 6H / 4H accuracy grade |

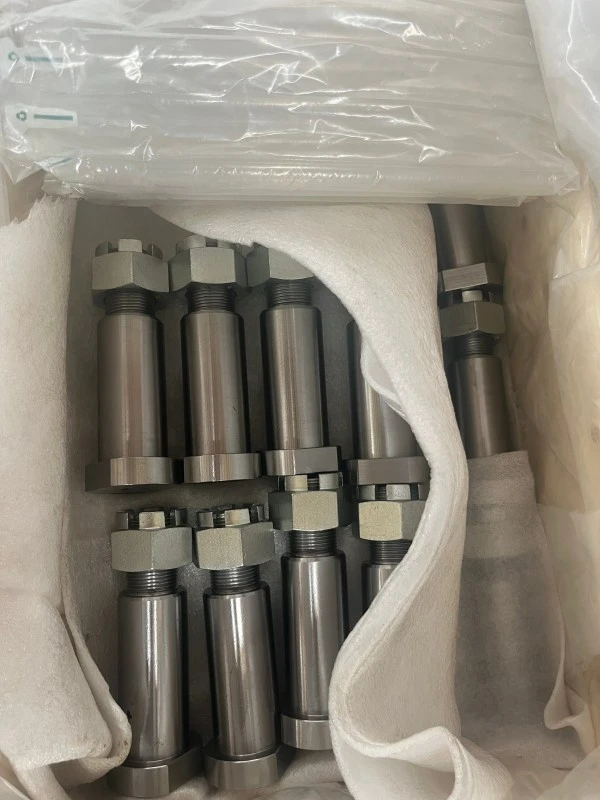

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q: Are you a genuine factory?
A: We are a direct manufacturer with nearly 10 years of cnc machining parts export experience, located in Taishan District, Taian City, Shandong Province. Feel free to visit our factory.
Q: How long does a quotation take?
A: After receiving detailed information(your 2D/3D drawings), we will quote you within 8 hours. If the quote is delayed by some reasons, we will notify you.
Q: Will my drawing and product be confidential after you get it?
A: We can sign the NDA for all about your project.
Q: How can you guarantee quality?
A: Always a pre-production sample before mass production;In production, after each process is completed, 100% testing shall be carried out by the quality control department, and the test shall be passed before the next process is shipped.
Q: What's the MOQ?
A: In general 10 pcs, but can accept low quantity depend on specific project.
