Working principle

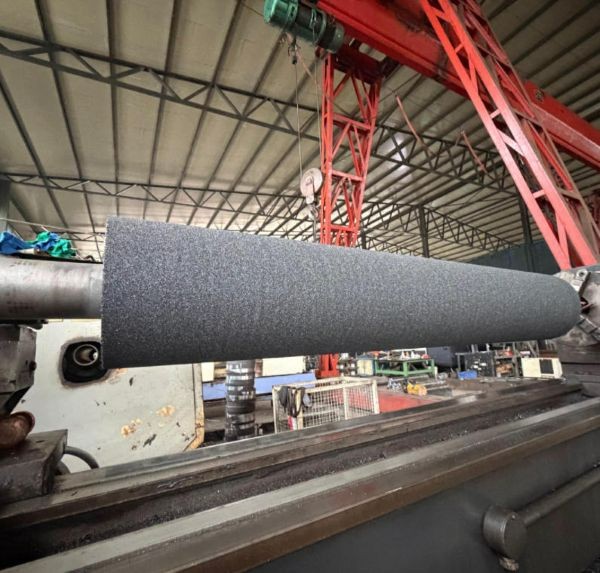

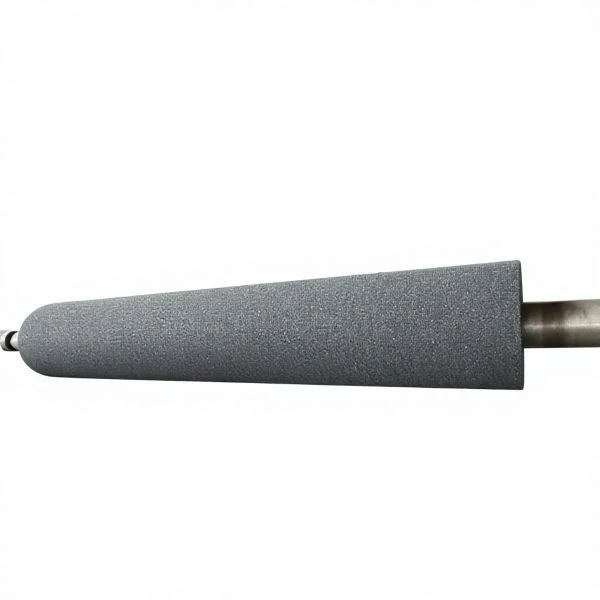

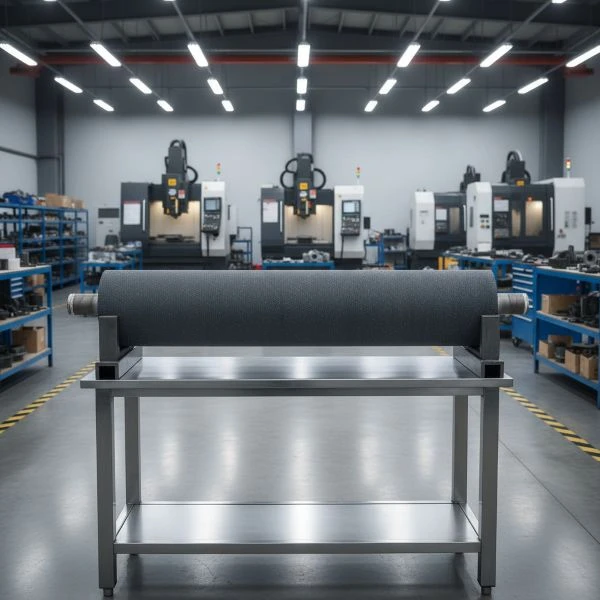

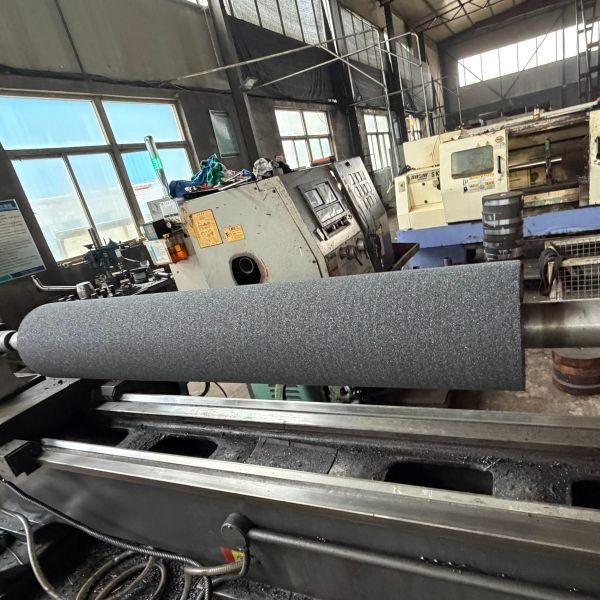

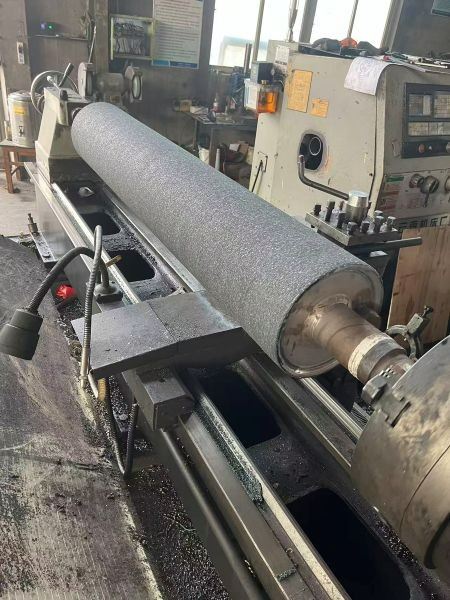

The motor drives the sand roller to operate at high speed, which is coated with a highly wear-resistant flexible sand belt for high-speed rotational friction. The sand frame is equipped with floating buffer cylinders that automatically retreat when encountering plate protrusions and press down on concave areas to ensure full coverage of both smooth and uneven surfaces during flexible grinding, thereby overcoming the limitation of conventional rigid sanders that can only grind flat surfaces while failing to adequately process irregularities.
Equipped with an optical automatic oscillating alignment system, the sand belt undergoes slight back-and-forth oscillation from left to right, enabling cross-oriented grinding that eliminates surface texture patterns and ensures more uniform grinding in concave and convex dead zones.
The fixed-thickness leveling system features independently pneumatic-adjustable upper and lower sand frames, with digital scales for precise control of grinding clearance. It removes surface protrusions according to specified thickness standards, ensures uniform plate thickness, and simultaneously smooths concave areas.
The dust collection system features a fully enclosed dust chamber with dual suction ports at the top and bottom, simultaneously removing ground-dusted rock wool fibers. It is equipped with an external pulse-jet dust removal fan to ensure dust-free operation and prevent fiber dispersion that could contaminate the workshop.
After completion of material shaping and grinding, the plates are automatically conveyed by the belt. Surface irregularities on both sides are eliminated simultaneously, resulting in smooth surfaces with uniform thickness, enabling direct progression to the subsequent lamination process.
Product Features
The flexible floating sand frame features a cylinder-buffered floating grinding mechanism specifically designed for uneven plate surfaces, capable of adapting to surface height differences within ±15 mm. It effectively grinds both bulged, concave, and wavy plates without issues such as missed areas or localized excessive grinding that could damage rock wool boards.
01
The variable-frequency, stepless speed-regulating sand belt and plate conveying speeds can be independently adjusted via frequency conversion. Low-density soft rock wool is processed with low-speed light grinding, while high-density hard rock wool requires high-speed heavy grinding, making it suitable for materials of varying hardness.
02
Fully automated safety protection system featuring: automatic shutdown upon belt deviation, overload power interruption protection, low-pressure alarm, emergency braking, leakage current protection, audible and visual fault alarms, and operational safety; one-way anti-rebound pressure mechanism to prevent panel rebound injuries.
03
The modular, easy-to-maintain sand roller, sand belt, and pressure roller assemblies feature a quick-release design, allowing individual replacement of worn components without requiring complete disassembly, thereby reducing maintenance downtime.
04
video
Related products
Rock wool air flow conveyor
Pneumatic conveyors (also known as air slide conveyors) are highly efficient and environmentally friendly equipment that use airflow energy to transport powder and granular materials through closed pipelines, representing the mainstream powder conveying solution in modern industry.
On-site installation: Application scenarios
Automation production line configuration for rock wool (core application scenario): After forming and curing, rock wool panels exhibit uneven surface texture and thickness variation; continuous online grinding ensures uniform thickness and flatness, followed by direct film coating, cement-based lamination, and fabrication of integrated exterior wall insulation panels. Compatible with production lines for vertical-fiber rock wool, horizontal-fiber rock wool, and high-density fire-resistant rock wool.
The deep-processing plant for insulation panels sources semi-finished rock wool boards from external suppliers, which may exhibit bulges, depressions, or surface fiber clumping. Each board is individually ground and leveled using dedicated machinery for precision processing into custom-sized insulation panels, equipment soundproofing rock wool, and pipeline insulation rock wool.
When processing homogeneous composite panels for exterior walls or mortar rock wool boards, applying a composite mortar layer to the rock wool surface may result in uneven undulations; use a polishing machine to smooth out protrusions on the surface mortar layer, ensuring even panel installation and preventing hollow spots or edge warping during exterior wall construction.
Polish ceramic fiber boards and glass wool insulation products; level surface irregularities on aluminum silicate fiber boards and glass wool insulation boards; perform precision finishing of fire-resistant insulation materials.
Small rock wool product workshops and contract manufacturing services: 600 compact models suitable for small-to-medium workshops, capable of processing small batches of multi-specification panels with flexible arrangement options, eliminating the need for large-scale production lines.
