Working principle
Feeding Conveyance: Variable-frequency conveyor belts paired with segmented elastic pressing rollers feed rock wool boards at a constant speed. The pressing rollers adapt to variations in board thickness to prevent deviation, warping, edge gnawing and tail scraping of boards;
Thickness Setting Adjustment: Input the target thickness via the numerical control system, and the sanding rollers automatically lift, lower and lock the processing height to standardize grinding removal and ensure uniform thickness across the entire board;

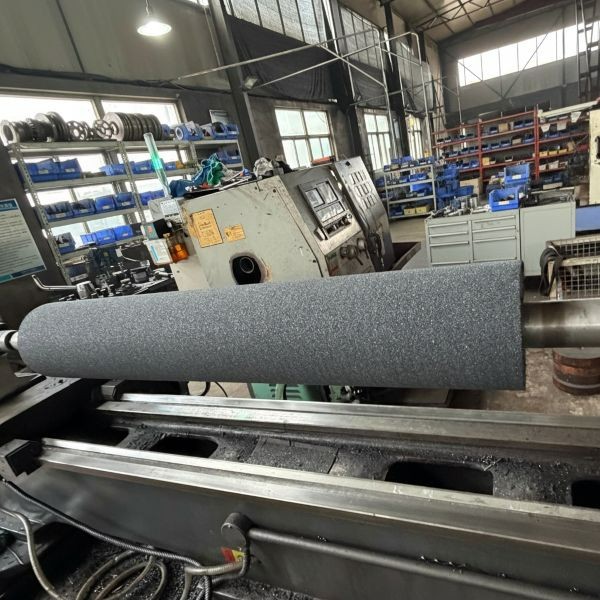

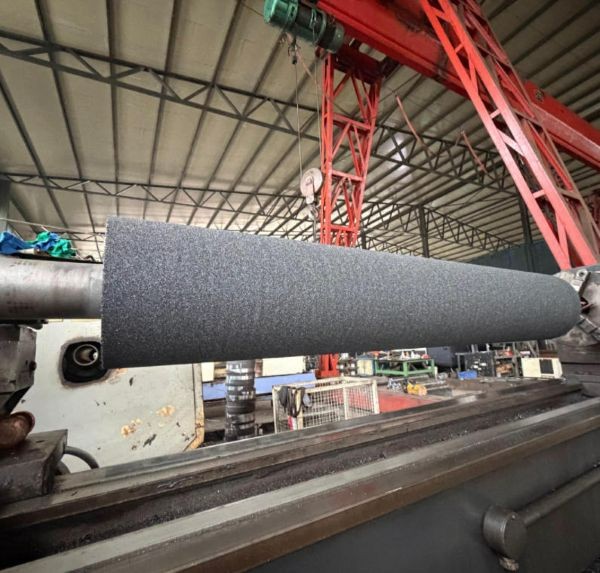

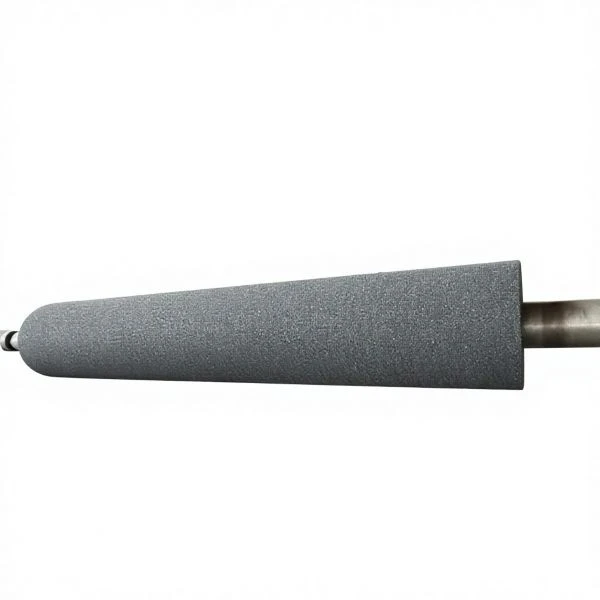

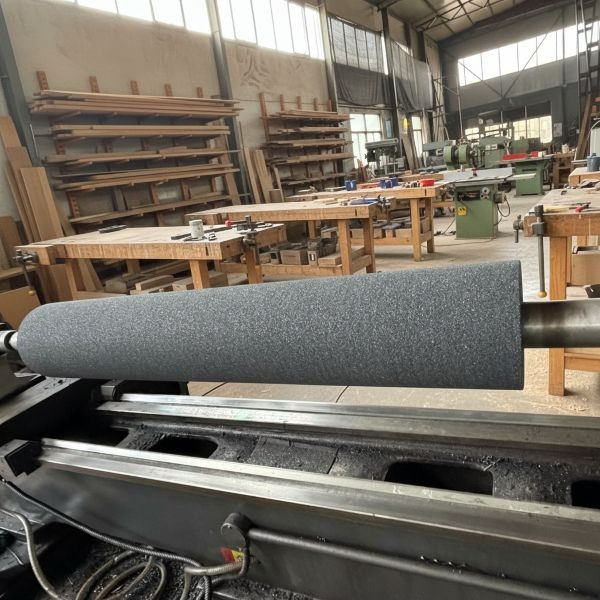

Cross Uniform Sanding: High-speed abrasive belts rotate with sand rollers and work in tandem with an opto-pneumatic swing mechanism. The abrasive belts swing slightly left and right repeatedly to form cross grinding textures and eliminate uneven single-point sanding depth. Coarse sand rollers first level protrusions, while fine sand rollers perform precision polishing. Double-layer sanding delivers smooth and even board surfaces;
Synchronized Dust Recovery: The fully enclosed sanding bin is equipped with a pulse dust removal system that extracts rock wool fiber dust in real time, preventing accumulated cotton flocks from scratching the board surface;
Brush Cleaning: Rear-mounted dust removal brush rollers sweep away residual loose cotton on the board surface, producing flat and clean finished boards upon discharge.
Product Features
CNC Precision Thickness Setting: Micron-level lifting adjustment with thickness error ≤±0.2 mm, enabling highly consistent thickness across batches of boards.
01
Fully automatic continuous operation: automatic feeding, sanding, dust cleaning and discharging throughout the whole process, only one worker is required for monitoring, and handheld sanding is unnecessary.
02
Uniform polishing without uneven board surfaces: Cross grinding via oscillating abrasive belts plus dynamically balanced calibrated rubber rollers eliminates wavy patterns, localized over-grinding and missing grinding areas on board surfaces, delivering consistent roughness across the entire rock wool board;
03
One machine compatible with multiple processes: Replace abrasive belts of different grit sizes for rough grinding and leveling, fine grinding and polishing, and surface roughening of boards
04
video
Related products
Rock wool melting cupola furnace
The rock wool vertical furnace is the core high-temperature melting equipment for producing rock wool insulation materials, classified as a vertical continuous melting furnace. It primarily uses coke as fuel to melt raw materials such as basalt, diabase, slag, and dolomite at temperatures ranging from 1450°C to 1600°C, yielding a homogeneous, flow-stable molten mixture that serves as the qualified feedstock for subsequent centrifugal fiber-forming processes.
On-site installation: Application scenarios
The integrated automated production line is coupled with the cutting, flipping, and film-coating processes of rock wool production lines, enabling a continuous automated grinding section; the compact standalone unit is suitable for small-to-medium workshops and contract processing grinding services.
For special application scenarios, rock wool boards shall have a lightly textured surface suitable for adhesive bonding or coating spraying; substandard rock wool boards with irregularities, rough edges, or thickness deviations after repair and molding shall undergo secondary processing for reuse.
